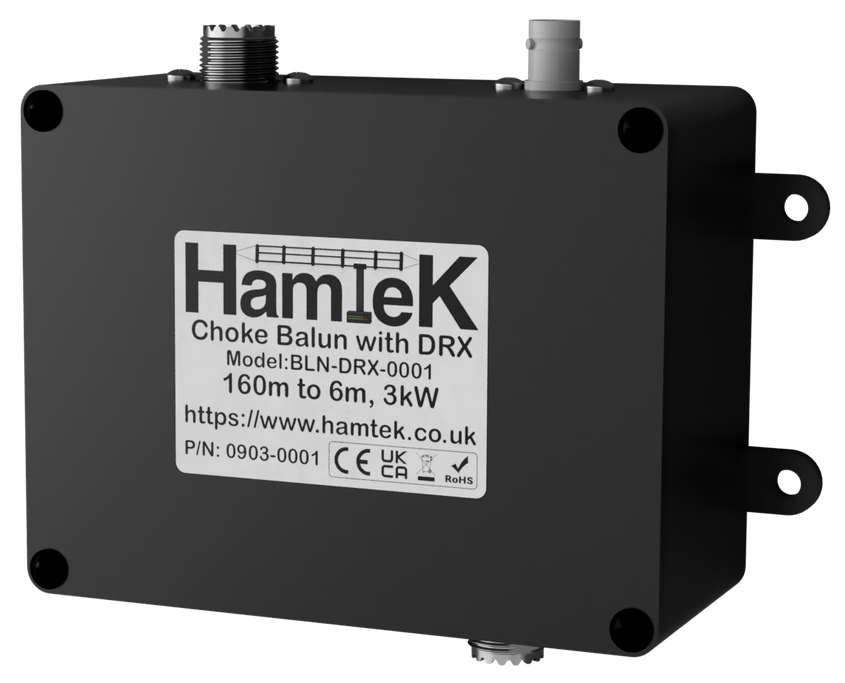

HF Balun with Diversity Reception Output

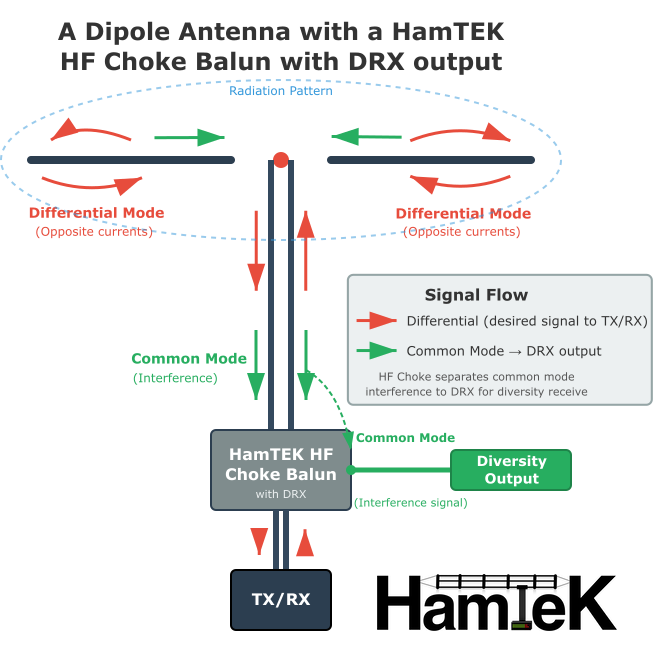

The HamTEK BLN-DRX-0001 HF Choke with DRX (Diversity RX) is the first balun designed to use what others throw away. It’s a choke balun that suppresses unwanted common-mode currents on your antenna feedline and simultaneously extracts that same signal as a protected, low-level output for noise-cancelling or diversity reception systems. Connect the DRX output to a noise canceller or diversity input and your main antenna becomes its own noise probe. No need for a secondary antenna system. Built and tested in the UK, the BLN-DRX-0001 combines robust construction with true
RF innovation — turning common mode signals into an asset for cleaner, quieter reception.

Key Features

• High power handling to 3kW
• Wide frequency range of 1MHz to 60MHz

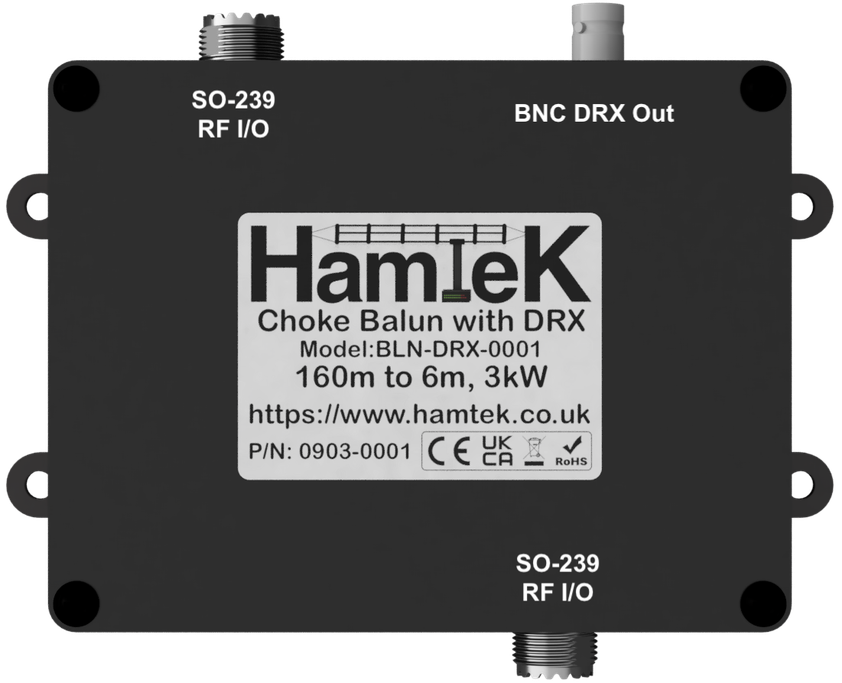

• SO-239 connectors for the RF path
• BNC connection for the DRX output
• Integrated protection system protects connected equipment from high common mode voltages
• Protection system automatically resets after overload
• IP65 water resistant enclosure for outdoor use
• High UV resistance for years of direct sun exposure
• Pressure equalisation vent to prevent moisture being drawn into the enclosure
